CMCS-1t Weighing Sensor
The CMCS-1t sensor of Bongshin from South Korea is a high-performance weighing sensor. The CMCS series is a spoke-type pressure sensor, and its compact structural dimensions make it an ideal choice for testing and weighing systems.
I. Basic Characteristics
Model: CMCS-1t
Brand: Bongshin (South Korea)
Type: Spoke-type Pressure Sensor
Material: Stainless steel, with a protection level of IP68, fully sealed and welded, waterproof and moisture-proof.
Loading Method: Compression Loading
II. Performance Parameters
(1) High Precision: The CMCS-1t sensor of Bongshin has high precision and can provide stable measurement data.
(2) Strong Overload Resistance: This sensor is designed with strong overload resistance and is suitable for various complex weighing environments.
(3) Good Stability: The sensor has good stability and is not prone to failures during long-term use.
MODEL | CMCS |
Rated capacity (R.C.) | 500kg, 1, 2, 5, 10t |
Rated output(R.O.) | 2.0mV/V ± 0.2% |
Non-linearity | ≤ 0.03% R.O. |
Hysteresis | ≤ 0.03% R.O. |
Non-repeatability | ≤ 0.03% R.O. |
Creep error | ≤ 0.03% in 20min. |
Zero balance | ≤ 1% R.O. |
Compensated temperature range | -10 ~ 70°C |
Operating temperature range | -20 ~ 80°C |
Temp. effect on rated output | ≤ 0.03% LOAD/10°C |
Temp. effect on zero balance | ≤ 0.03% R.O./10°C |
Terminal input resistance | 350 Ohms ± 3.5 Ohms |
Terminal output resistance | 350 Ohms ± 5 Ohms |
Insulation resistance (Min.) | 2000 MOhms at 50V DC |
Excitation voltage | 3~12V(Recommended), 15V(Max.) |
Electrical connection | Ø7mmx6m(22AWG x 4Core Shielded) |
Protection class | meets IP 68 |
Safe overload | 150% R.C |
Ultimate overload | 300% R.C |
III. Application Fields
Testing Machines: In material testing machines, it is used to measure the weight and mechanical properties of materials.
Tanks and Bins: In the field of industrial automation, it is used to measure the weight of materials in tanks and bins to achieve precise material management.
Batching Systems: In batching systems, it is used to accurately measure the weight of various raw materials to ensure the accuracy of the ratio.
IV. Installation and Maintenance
Simple Installation: The CMCS-1t sensor is designed with a simple installation method and can be quickly and easily installed on various devices.
Convenient Maintenance: The sensor needs to be regularly maintained and serviced during use to ensure its long-term stable operation. When maintaining, please follow the instructions in the product manual carefully to avoid damaging the sensor.

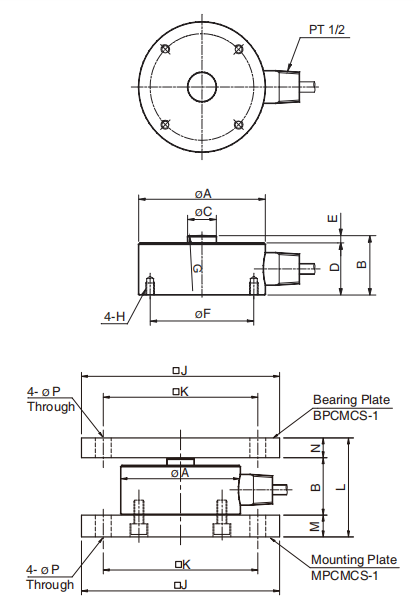

V. Parameter Diagram and Parameter Table
VI. Manufacturer Background and About Us
Bongshin (South Korea) is a leading manufacturer, focusing on the research, development and production of strain gauge-based weighing sensors, digital indicators, crane scales and weighing systems. The company was established in 1985, and its products are well-known to local customers for their reliable quality and are exported to 38 countries such as the United States, the European Union and Japan. Modern Haofang Instrument and Meter Technology Co., Ltd., as the general agent of Bongshin, provides professional and comprehensive full-process services. If you have any questions about the price, model, installation, etc. of the [CMCS-1t Weighing Sensor], you can contact us to obtain the latest product information.
