model：H6F-C3-100KG-3B6-S1-D50
brand：ZEMIC
• Nickel plated alloy steel IP66 single point load cell
• Bending beam
• Suitable for belt, platform and other electronic weighing devices
• Maximum platform size: for 50kg-200kg: 400 x 400 mm for 250kg- 500kg: 600 x 800 mm for 750kg-2t: 1200 x 1200 mm
1、SPECIFICATION
Accuracy class | C3 | |||
Output sensitivity (=FS) | mV/V | 2.0 ± 0.2 | ||
Maximum capacity (Emax) | kg | 100/150/200/250/500/750/1000/2000 | ||
Maximum number of load cell intervals (nLC) | 3000 | |||
Ratio of minimum LC verification interval Y=Emax / Vmin | 7500 | |||
Combined error | %FS | ± 0.020 | ||
Minimum dead load | %FS | 0 | ||
Safe overload | %FS | 150 | ||
Ultimate overload | %FS | 300 | ||
Zero balance | %FS | ± 1.0 | ||
Excitation, recommended voltage | V | 5 ~ 12 (DC) | ||
Excitation maximum | V | 18 (DC) | ||
Input resistance | Ω | 400 ± 20 | ||
Output resistance | Ω | 351 ± 2 | ||
Insulation resistance | MΩ | ≥ 5000 (50VDC) | ||
Compensated temperature | ℃ | -10 ~+40 | ||
Operating temperature | ℃ | -35 ~ +65 | ||
Storage temperature | ℃ | -40 ~ +70 | ||
Element material | Nickel plated alloy steel | |||
Ingress protection (according to EN 60529) | IP66 | |||
Recommended torque on fixation | N.m | M12:75 (Below 500kg) M16:200 （750kg-2000kg) | ||
ATEX classification (optional) | II1G Ex ia IIC T4 | II1D Ex iaD 20 T73℃ | II3G Ex nL IIC T4 | |
Note: "S1" output sensitivity is 2.0±0.002mV/V,input resistance is 384±4 | ||||

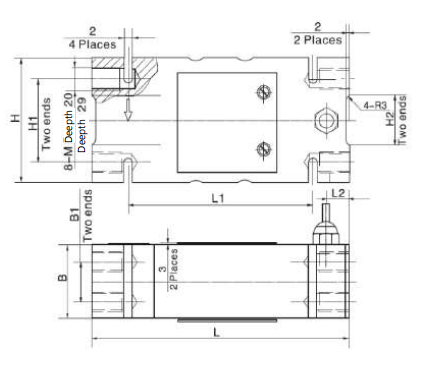

2、DIMENSIONS mm(inch)
Dimension Capacity | 50kg - 200kg | 250kg - 500kg | 750kg - 2t |
B | 44 (1.73) | 60 (2.36) | 76 (2.99) |
B1 | 24 (0.94) | 36 (1.42) | 46 (1.81) |
H | 75 (2.95) | 95 (3.74) | 125 (4.92) |
H1 | 50 (1.97) | 70 (2.76) | 95 (3.74) |
H2 | 30 (1.18) | 30 (1.18) | 65 (2.56) |
L | 156 (6.14) | 146 (5.75) | 176 (6.93) |
L1 | 112 (4.4) | 110 (4.33) | 110 (4.33) |
L2 | 14 (0.55) | 11 (0.43) | 24 (0.94) |
M | M12 | M12 | M16 |
3、WIRING
• Shielded, 6 conductor cable.
• Cable diameter: Φ 6.2mm
• Standard cable length: 3m
• Shield is not connected to element
