model：H8C-C3-1.0T-4B
brand：ZEMIC
• Nickel plated alloy steel IP67 shear beam load cell (100 kg, 250kg are bending beam load cells)
• Adhesive sealed
• Suitable platform weighing, bed weighing, etc.
• High accuracy
• High reliability
• Current calibrated (sc-option)
1、SPECIFICATION
Maximum capacity (Emax) | t | 0.5/1/2/2.5/3/4/5/6/7.5 | ||||
klb | 1/1.5/2/2.5/3/4/5/7.5/10/20 | |||||
Accuracy class | C3 | C4 | C5 | A5M | B10M | |
Approvals | OIML R60 C3 | OIML R60 C4 | OIML R60 C5 | Ⅲ5000 Multiple | Ⅲ L 10000 Multiple | |
Maximum number of load cell intervals (nLC) | 3000 | 4000 | 5000 | 5000 | 10000 | |
Ratio of minimum LC verification interval Y=Emax / Vmin | 10000 | 14000 | 18000 | 15000 | 10000 | |
Combined error | %FS | ±0.020 | ±0.018 | ±0.010 | ±0.026 | ±0.050 |
Creep | %FS/30min | ±0.016 | ±0.012 | ±0.010 | ±0.017 | ±0.040 |
Temperature effect on sensitivity | %FS/10℃ | ±0.011 | ±0.009 | ±0.008 | ±0.013 | ±0.040 |
Temperature effect on zero | %FS/10℃ | ±0.015 | ±0.010 | ±0.007 | ±0.014 | ±0.020 |
Output sensitivity (=FS) | mV/V | 3.0±0.003 2.0±0.002 | ||||
Input resistance | Ω | 350±3.5 | ||||
Output resistance | Ω | 350±3.5 | ||||
Insulation resistance | MΩ | ≥ 5000 (50VDC) | ||||
Zero balance | %FS | ±1.0 | ||||
Compensated temperature | ℃ | -10~+40 | ||||
Operating temperature | ℃ | -35~+70 | ||||
Excitation, recommended voltage | V | 5~12 (DC) | ||||
Excitation maximum | V | 18 (DC) | ||||
Safe overload | %FS | 150 | ||||
Ultimate overload | %FS | 300 | ||||
Recommended torque on fixation | N.m | M12: 100, M18: 200, M24: 700 | ||||
Ingress protection (according to EN 60529) | IP67 | |||||
ATEX classification (optional) | Operating temperature | ℃ | -20~+40 | |||
II1G Ex ia II1C T4 | II1D Ex iaD20 T73℃ | II3G Ex nL II C T4 | ||||
"S1" Output Sensitivity is 2.0±0.002MV/V | ||||||

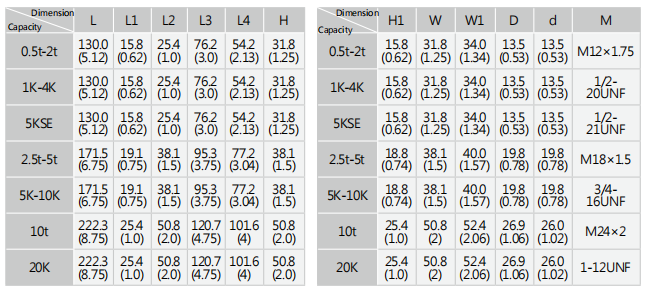

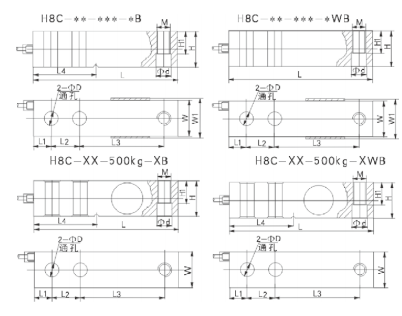

2、DIMENSIONS mm(inch)
3、WIRING
• Shielded, 4 conductor cable
• Cable diameter: Φ5mm
• Standard cable length for 100kg - 2t: 4m and 6m for the higher capacities
• Shield is not connected to the element
