Type: Shear Beam Load Cell
Model: HLCB1D1-220KG
SPECIAL FEATURES
- Hermetically sealed (IP68)
- Max. capacities: 220 kg ... 10 t
- Stainless steel
- Low overall height
- Meets EMC/ESD requirements according to EN 45 501
- Complies with OIML R60 regulations up to 6000d
- Explosion-proof versions according to ATEX 95 optional

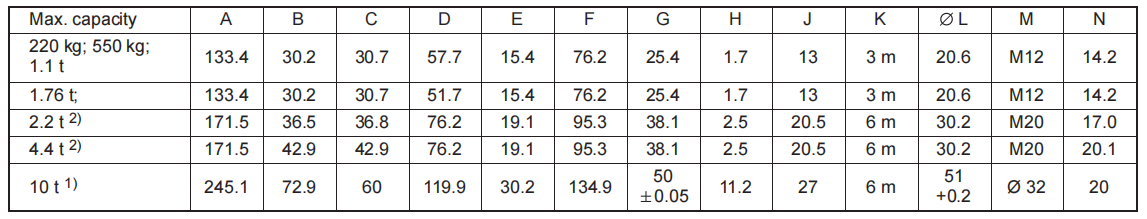

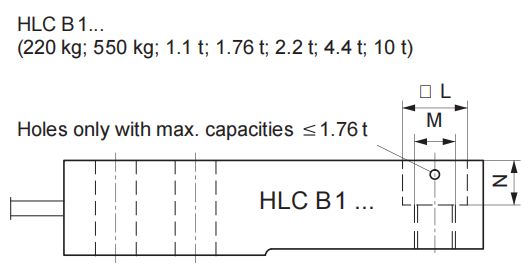

DIMENSIONS

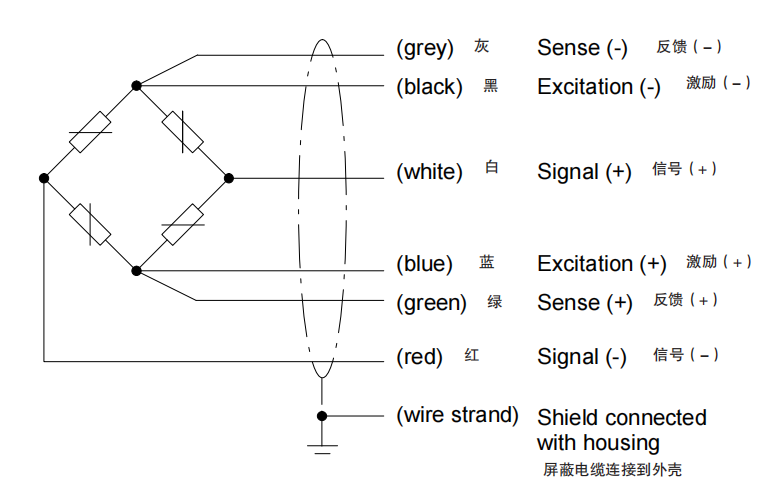

Wiring code (6-wire circuit)
Here is the detailed information of the Load Cell HLCB1D1-220KG. As a home of imported sensors, modern hero technologies(shenzhen)CO.,LTD has perfect technical services and pre - sales and after - sales support. If necessary, please contact us.
