model：L6D-C3-10KG
brand：ZEMIC
• Aluminium-Alloy IP65 single point load cell
• Colourless anodized
• Suitable for pricing scales, bench scales, etc.
• Maximum platform size: 250 x 350 mm
1、SPECIFICATION
Accuracy class | C3 | OIML R60 C3 | OIML R60 C4 | OIML R60 C5 | |
Output sensitivity (=FS) | mV/V | 2.0 ± 0.2 | |||
Maximum capacity (Emax) | kg | 2.5 | 3/5/6/8/10/15/20/30/35/40/50 | ||
Maximum number of load cell intervals (nLC) | 3000 | 3000 | 4000 | 5000 | |
Ratio of minimum LC verification interval Y=E max / Vmin | 10000 | 10000 | 15000 | 20000 | |
Combined error | %FS | ± 0.02 | ± 0.0150 | ± 0.01 | |
Minimum dead load | %FS | 0 | |||
Safe overload | %FS | 120 | |||
Ultimate overload | %FS | 150 | |||
Zero balance | %FS | ± 2.0 | |||
Excitation, recommended voltage | V | 5 ~ 12 (DC) | |||
Excitation maximum | V | 18 (DC) | |||
Input resistance | Ω | 406 ± 6 | |||
Output resistance | Ω | 350 ± 3 | |||
Insulation resistance | MΩ | ≥ 5000 (50VDC) | |||
Compensated temperature | ℃ | -10 ~+40 | |||
Operating temperature | ℃ | -35 ~ +65 | |||
Storage temperature | ℃ | -40 ~ +70 | |||
Element material | Aluminium | ||||
Recommended torque on fixation | N.m | < 30kg: 6 ≥ 30kg:10 | |||
Ingress protection (according to EN 60529) | IP65 | ||||

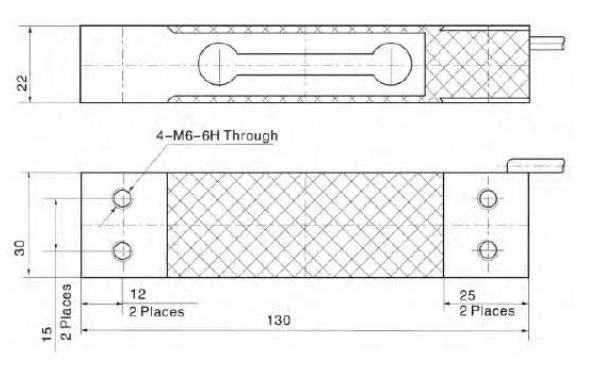

2、DIMENSIONS mm(inch)

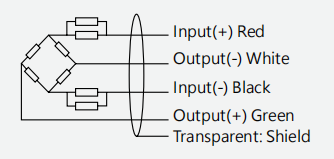

3、WIRING
• Shielded, 4 conductor cable.
• Cable diameter: Φ3.8mm.
• Standard cable length: 0.40m
• Shield is not connected to element.
• Cable jacket in PVC.
