model：L6F-C3-250KG-3B6
brand：ZEMIC
• Aluminium-alloy IP65 single point load cell.
• Colourless anodized
• Suitable for belt, pricing and platform scales
• Maximum platform size: for 50kg-200kg: 600 x 600 mm for 250kg-500kg: 600 x 800 mm for 750kg-2t: 1200 x 1200 mm
1、SPECIFICATION
Accuracy class | OIML R60 C3 | |
Output sensitivity (=FS) | mV/V | 2.0 ± 0.2 |
Maximum capacity (Emax) | kg | 50/100/150/200/250/500/750/1000/2000 |
Maximum number of load cell intervals (nLC) | 3000 | |
Ratio of minimum LC verification interval Y=Emax / Vmin | 7000 | |
Combined error | %FS | ± 0.02 |
Minimum dead load | kg | 0% |
Safe overload | %FS | 120 |
Ultimate overload | %FS | 150 |
Zero balance | %FS | ± 2.0 |
Excitation, recommended voltage | V | 5 ~ 12 (DC) |
Excitation maximum | V | 18 (DC) |
Input resistance | Ω | 406 ± 6 |
Output resistance | Ω | 350 ± 3 |
Insulation resistance | MΩ | ≥ 5000 (50VDC) |
Compensated temperature | ℃ | -10 ~+40 |
Operating temperature | ℃ | -35 ~ +65 |
Storage temperature | ℃ | -40 ~ +70 |
Element material | Aluminium | |
Recommended torque on fixation | N.m | M12: 100 M16: 160 |
Ingress protection (according to EN 60529) | IP65 |

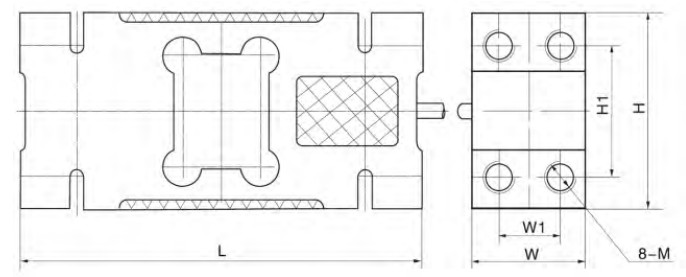

2、DIMENSIONS mm(inch)
Dimension Capacity | H | H1 | L | W | W1 | M |
50~200kg, 250kgSE | 75 (2.95) | 50 (1.97) | 156 (6.14) | 44 (1.73) | 24 (0.94) | M12Depth20 |
250~500kg, 250kgSE | 95 (3.74) | 70 (2.76) | 146 (5.75) | 60 (2.36) | 36 (1.41) | M12Depth18 |
750~2000kg | 125 (4.92) | 95 (3.74) | 176(6.93) | 76 (2.99) | 46 (1.81) | M16Depth20 |
3、WIRING
• Shielded, 6 conductor cable
• Cable diameter: Φ6.2mm
• Standard cable length: 3m
• Shield is not connected to element.
• Cable jacket in PVC
Here is the detailed information of the L6F-C3-250KG-3B6 load cell. As a home of imported sensors, Shenzhen Xiandai Haofang Instrument and Meter Technology Co., Ltd. has perfect technical services and pre - sales and after - sales support. If necessary, please contact us. Mobile/WeChat: 13392863941.
