Floor Scale, Tank Weighing
MT1260 provides the best weighing performance for floor scales and hopper weighing in its capacity range. With a low profile design, cost optimization and an attractive product appearance can be achieved.
Off-Center Compensation
One load cell can be used to support a weighing platform and, due to the offcenter load compensation, the MT1260 will weigh within tolerance regardless of load application point.
Robustness
MT1260 allows 50% static overload without compromising the weighing performance. The passivated aluminium provides good corrosion resistance suitable for many industrial applications.
The MT1260 load cell features:
• OIML R60 C3 approval
• NTEP 5000 III S/M approval
• ATEX Zone 1/2 and 21/22 approvals
• Off-center load compensation (R76)
• 600x600 mm platform size
• IP67 protection class
• Passivated aluminum
• 50-750kg capacity range
The MT1260 is the ideal solution for floor scales and smaller hoppers. Due to the low profile the integration into any system is easy. The broad capacity range and large platform size allows wide useage in industrial weighing applications.

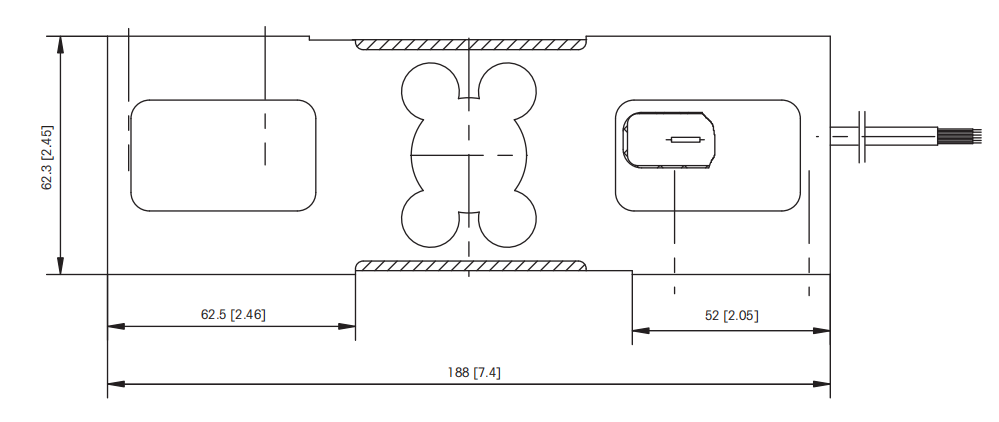

MT1260 Load Cell Dimensional Drawings mm [inch]
