model：L6E3-C3-100KG-3G
brand：ZEMIC
• Aluminium-alloy IP65 single point load cell.
• Colourless anodized
• Suitable for pricing scales, bench scales, etc
• Maximum platform size: 450 x 450 mm
AVAILABLE MODELS
Capacity | Accuracy | Full article description |
50 kg | C3/C4 | L6E3-C3/C4-50kg-2G |
100 kg | C3/C4 | L6E3-C3/C4-100kg-2G |
150 kg | C3/C4 | L6E3-C3/C4-150kg-2G |
200 kg | C3/C4 | L6E3-C3/C4-200kg-2G |
250 kg | C3/C4 | L6E3-C3/C4-250kg-2G |
300 kg | C3/C4/C5 | L6E3-C3/C4/C5-300kg-2G |
400 kg | C3/C4/C5 | L6E3-C3/C4/C5-400kg-2G |
500 kg | C3/C4/C5 | L6E3-C3/C4/C5-500kg-2G |
1、SPECIFICATION
Accuracy class | OIML R60 C3 | OIML R60 C4 | OIML R60 C5 | |
Output sensitivity (=FS) | mV/V | 2.0 ± 0.2 | ||
Maximum capacity (Emax) | kg | 50/100/150/200/250/300/400/500 | 300/400/500 | |
Maximum number of load cell intervals (nLC) | 3000 | 4000 | 5000 | |
Ratio of minimum LC verification interval Y=Emax / Vmin | 10000 | 15000 | 20000 | |
Combined error | %FS | ± 0.0200 | ± 0.015 | ± 0.01 |
Minimum dead load | %FS | 0 | ||
Safe overload | %FS | 120 | ||
Ultimate overload | %FS | 150 | ||
Zero balance | %FS | ± 2.0 | ||
Excitation, recommended voltage | V | 5 ~ 12 (DC) | ||
Excitation maximum | V | 18 | ||
Input resistance | Ω | 406 ± 6 | ||
Output resistance | Ω | 350 ± 3 | ||
Insulation resistance | MΩ | ≥ 5000 (50VDC) | ||
Compensated temperature | ℃ | -10 ~+40 | ||
Operating temperature | ℃ | -35 ~ +65 | ||
Storage temperature | ℃ | -40 ~ +70 | ||
Element material | Aluminium | |||
Recommended torque on fixation | N.m | M6:10 | ||
Ingress protection (according to EN 60529) | IP65 | |||

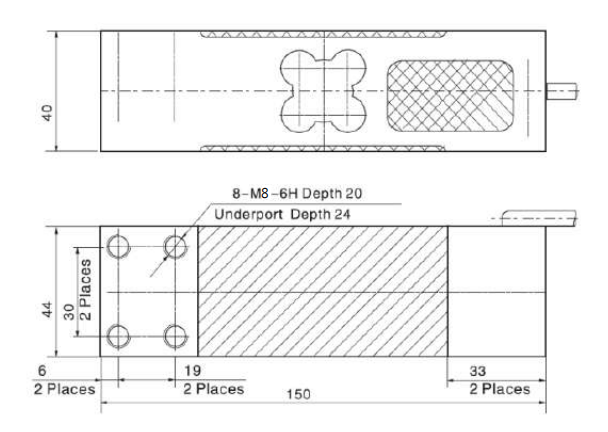

2、DIMENSIONS mm(inch)
3、WIRING
• Shielded, 4 conductor cable
• Cable diameter: Φ5.3mm
• Standard cable length: 2m
• Shield connected to element
• Cable jacket in PVC
