model：L6J-C3D-8KG-0.45B
brand：ZEMIC
• Aluminium-Alloy IP65 single point load cell
• Colourless anodized
• Suitable for single or double load cell structured platform scales
• Recommended platform size: 200 x 200 mm
AVAILABLE MODELS
Capacity | Accuracy | Full article description |
2 kg | C3D | L6J-C3D-2kg-0.45B |
3 kg | C3D | L6J-C3D-3kg-0.45B |
5 kg | C3D | L6J-C3D-5kg-0.45B |
8 kg | C3D | L6J-C3D-8kg-0.45B |
15 kg | C3D | L6J-C3D-15kg-0.45B |
20 kg | C3D | L6J-C3D-20kg-0.45B |
1、SPECIFICATION
Accuracy class | C3D | |
Output sensitivity (=FS) | mV/V | 1.5 ± 0.2 |
Maximum capacity (Emax) | kg | 2/3/5/8/10/15/20 |
Maximum number of load cell intervals (nLC) | 2500 | |
Ratio of minimum LC verification interval Y=Emax / Vmin | 5000 | |
Combined error | %FS | ± 0.0280 |
Minimum dead load | %FS | 0 |
Safe overload | %FS | 150 |
Ultimate overload | %FS | 300 |
Zero balance | %FS | ± 2.0 |
Excitation, recommended voltage | V | 5 ~ 12 (DC) |
Excitation maximum | V | 18 (DC) |
Input resistance | Ω | 406 ± 6 |
Output resistance | Ω | 350 ± 3 |
Insulation resistance | MΩ | ≥ 5000 (50VDC) |
Compensated temperature | ℃ | -10 ~+40 |
Operating temperature | ℃ | -35 ~ +65 |
Storage temperature | ℃ | -40 ~ +70 |
Element material | Aluminium | |
Recommended torque on fixation | N.m | M5: 7 |
Ingress protection (according to EN 60529) | IP65 |
2、DIMENSIONS mm(inch)

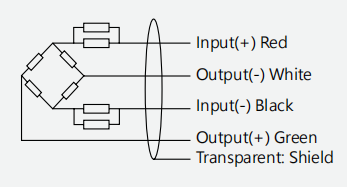

3、WIRING
• Shielded, 4 conductor cable
• Cable Diameter: Φ3mm
• Standard cable length: 0.45m
• Shield is not connected to element
• Cable jacket is PVC
