model：L6N-C3-30KG-3B6
brand：ZEMIC
• Aluminium-alloy IP65 single point load cell.
• Colourless anodized
• Suitable for single or double load cell structured platform scales
• Maximum platform size: 400 x 400 mm
AVAILABLE MODELS
3kg-100kg | Cx | L6N-Cx-xxkg-3B6/3YB6 |
1、SPECIFICATION
Maximum capacity (Emax) | kg | 3/5/8/10/15/20/30/40/50/75/100 | ||
Output sensitivity (=FS) | mV/V | 2.0±0. 2 | ||
Accuracy class | C3 | C4 | C5 | |
Combined error | %FS | ±0.02 | ±0.015 | ±0.01 |
Creep | %FS/30min | ±0.0167 | ±0.0125 | ±0.01 |
Temperature effect on sensitivity | %FS/10℃ | ±0.0175 | ±0.0131 | ±0.01 |
Temperature effect on zero | %FS/10℃ | ±0.02 | ±0.012 | ±0.009 |
Zero balance | %FS | ±2 | ||
Compensated temperature | ℃ | -10~40 | ||
Operating temperature | ℃ | -35~+65 | ||
Input resistance | Ω | 406±6 | ||
Output resistance | Ω | 350±3 | ||
Insulation resistance | MΩ | ≥ 5000 (50VDC) | ||
Excitation, recommended voltage | V | 5~12 (DC) | ||
Excitation maximum | V | 18 (DC) | ||
Safe overload | %FS | 120 | ||
Ultimate overload | %FS | 150 | ||
Protection Class | IP65 | |||
Cable SPECIFICATIONs | mm | φ4.8 | ||
Cable Length | m | 3 | ||
Recommended installation size | mm | 400×400 | ||
Corner correction | 0.02%load value/100mm | |||
Recommended torque on fixation | N.m | 10 | ||

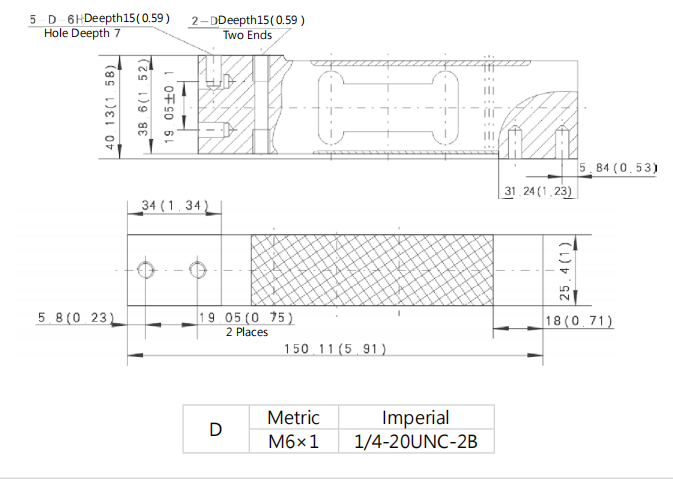

2、DIMENSIONS mm(inch)

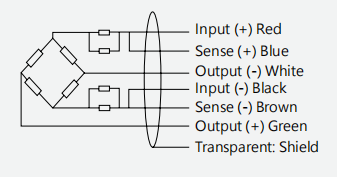

3、WIRING
• Shielded, 6 conductor cable
• Cable Diameter: Φ4.8mm
• Standard cable length: 3m
• Shield is not connected to element
• Cable jacket is PVC.
Here is the detailed information of the L6N-C3-30KG-3B6 load cell. As a home of imported sensors, Shenzhen Xiandai Haofang Instrument and Meter Technology Co., Ltd. has perfect technical services and pre - sales and after - sales support. If necessary, please contact us. Mobile/WeChat: 13392863941.
